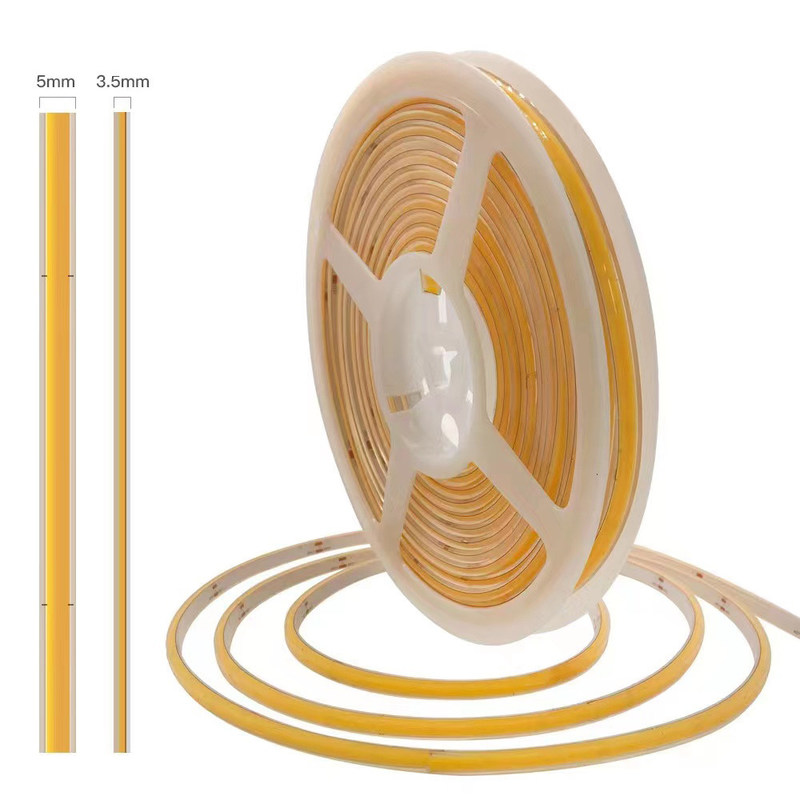

DC24V Side Top Emitting CCT Dimmable COB LED Strip 560Chips/M 16.4FT
Use method of tape:
In this COB strip, leds are arranged along the side of the strip rather than the surface, suitable for biased lighting applications. It provides even and point-free lighting than SMD led strips.
With CCT leds, you can adjust the color temperature from warm to cold (2700K to 6500K) to suit different moods. The dimming function can be controlled with a separate CCT dimmer.
If you choose the Tuya WiFi or Xiaomi Lamp /Skydance controller, it works with your smart home system and lets you control the lighting via Amazon Alexa/ Google Assistant or your phone APP.
Power supply:
The COB LED strip is designed for DC24V power supply. It consumes 12 watts per meter, 3.66 watts per foot, and you'll need a 3A 24V led with power to drive this 16.4 foot/roll light.
Install this bar:
Equipped with double-sided tape, this COB LED strip is easy to install and can be cut to lengths every 50mm(approximately 2 inches). It is also flexible and can bend or shape around corners and curves.
Available in IP20 and IP67 waterproof grades for indoor and outdoor use.
| Product Name | LED COB Light |
| Volgate | 24V/12V |
| Power | 10W/Meter Customized |
| LED QTY | 480led/Meter Customized |
| CCT | 2700~6500K Customized |
| CRI | 90 |
| Lumen/W | 70lm/W |
| Lumen/Meter | 700lm/meter |
| Length | 5M (Can be customized) |
| Led Brand | Cree/lumileds /Osram Customized |
| PCB Width | 8mm Customized |
| Beam Angle(°)FWHM | 120° |
| Cutting Size | 25mm 50mm |
| Definition of line sequence | Red=+12V Black=-12V |
| Outgoing lines way | Straight line & Side line & Bare & Connector |
| Control Mode | Single color temperature |
| Maximum serial number | Single power supply 5 meters in serial |
| Material | Milky Silicone clear sleeve |
| Oper.Temp. | “-25℃~+50℃ |
| IP Rating | IP20 IP65 IP67 Customized |
| IK Rating | IK08 |
| Certification | CE & RoHS |
Certification :
The led neon lights we have been doing the CE & RoHS Certification already as the below show.
Shanghai Wellshow Opto Electronics Co.,Ltd., founded in 2013 in China, relying on Dongguan Lan Kaixin as the production base;With the industry's advanced manufacturing equipment and the first through the ISO9001 quality management system certification;More than 40products have won national invention patents, utility model and appearance patents, products through CCC, CQC, CE, RoHS and other national lamps and lanterns inspection certification;Focusing on LED technology application innovation, industrial design innovation, business model innovation, is LED outdoor lighting, LED indoor lighting to soft light strip, neon light strip,linelight, LED module, intelligent lighting, commercial lighting and other products integrated application solutions provider.
FAQ
Q1. Are you a factory or trading company? A: We are a factory, we provide ODM& OEM services.
Q2. Do you have any MOQ limit for led
light order? A: Low MOQ, 1pc for sample checking is available
Q3. What about the lead time? A:Delivery time for sample:3-5days
after get your samples request and samples charge. Delivery time for mass production: 10-18days after order confirmed after
receiving buyer's deposit
Q4. How do you ship the goods and how long does it take to arrive? A: We usually ship by DHL, UPS, FedEx
or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q6: How to deal with the faulty? A: Firstly, Our products are produced in
strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send
new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can
discuss the solution including re-call according to real situation.
