24V Under Shelf LED Lighting Black Silver Aluminum Profile Under Cabinet Strip Lighting

24V Under Shelf LED Lighting Black Silver Aluminum Profile Under Cabinet Strip Lighting

24V Under Shelf LED Lighting

SMD2835 Under Shelf LED Lighting

6500K under cabinet strip lighting

Place of Origin:

China

Brand Name:

SHWellShow

Certification:

CE & RoHS

Model Number:

V Type led shelf light

Contact Us

Request A Quote
Product Details
Name:
Under Shelf Led Light
Material:
Aluminum + PVC
CRI:
>90
Length:
1ft2ft3ft4ft Customized
Install:
Clips/Magnets Mounting
Warranty:
3-years
Lamp Power:
14.4W/M,12W/M,8W/M
Application:
Residential,HOTEL,buildings And Shopping Malls
Input Voltage(v):
DC12V/24V
Item Type:
Light Strips,Cabinet Lights
Color Temperature(cct):
2700-6500K,Warm White,Cool White,yellow,all Colors Available
Led Light Source:
SMD2835,SMD5050
Color:
Blue,black Or Custom Colors,warm White,lemon,white/cold White/warm White
Payment & Shipping Terms
Minimum Order Quantity
One piece
Price
Negotiate
Packaging Details
Cartons
Delivery Time
5-8 work days
Payment Terms
L/C, , D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100000 piece per month
Product Description

24V LED Under Cabinet Light Black Silver Aluminum Profile LED Strip Light





  • The 24V led under cabinet light Strong, high shock resistance
  • The 24V led under cabinet light Easy to install by 3M tape on the back of strip,mounting by clips/"L"bracket ,surface mounting by magnets
  • The 24V led under cabinet light Cuttable every 3 LEDs along the cutting marks, without damaging other parts
  • The 24V led under cabinet light Compact size, easy to install
  • The 24V led under cabinet light Can withstand the temperature: -40 degree to 50 degree
  • The 24V led under cabinet light Flexible ribbon for curving around bends
  • The 24V led under cabinet light Completely smooth and even light spread, solving the uneven luminous problem
  • The 24V led under cabinet light Low energy consumption, pure brightness
  • The 24V led under cabinet light Environmentally friendly: No ultraviolet and infrared radiation, low heat-release and no mercury.
  • The 24V led under cabinet light Using Epistar LED light source,Excellent performance,super brightness, high efficiency,high CRI and lower light decay
  • The 24V led under cabinet light Constant voltage type and constant current type optional
  • The 24V led under cabinet light Waterproof and non-waterproof available.
  • The 24V led under cabinet light OEM/ODM available, customer‘s logo can be print on PCB or label.



Product Name LED shelf Light
Volgate 24V/12V
Power/Meter 5W 8W 10W 12W Customized
LED QTY/Meter 120leds 168leds 180leds 240leds  Customized
CCT 2700~6500K Customized
CRI 90
Lumen/W 85lm/W
Lumen/Meter 1224lm/meter
Length 0.5m 0.8m 1M 1.5M 2M   (Can be customized)
Led Brand Cree/lumileds/Osram Customized
PCB  Aluminum PCB
Beam Angle(°)FWHM 120°
Cutting Size 25mm 50mm 100mm Customized
Definition of line sequence Red=+12V Black=-12V
Outgoing lines way Straight line & Side line & Bare & Connector
Control Mode Switch bluetooth remote control
Maximum serial number Single power supply 5 meters in serial
Material Aluminum + Acrylic
Oper.Temp. “-25℃~+50℃
IP Rating IP20 IP65 IP67 Customized
IK Rating IK08
Certification CE & RoHS

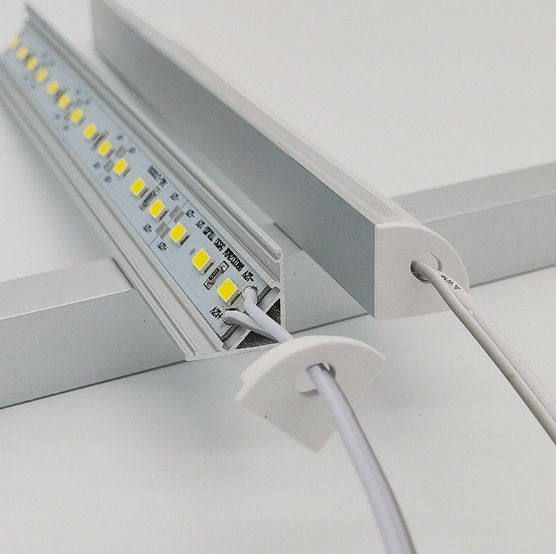

24V Under Shelf LED Lighting Black Silver Aluminum Profile Under Cabinet Strip Lighting 0

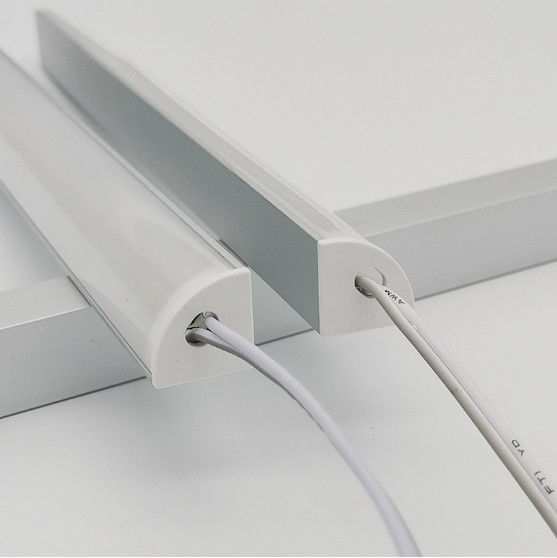

24V Under Shelf LED Lighting Black Silver Aluminum Profile Under Cabinet Strip Lighting 1



Certification :

The led neon lights we have been doing the CE & RoHS Certification already as the below show.

About Us :

Shanghai Wellshow Opto Electronics Co.,Ltd., founded in 2013 in China, relying on Dongguan Lan Kaixin as the production base;With the industry's advanced manufacturing equipment and the first through the ISO9001 quality management system certification;More than 40products have won national invention patents, utility model and appearance patents, products through CCC, CQC, CE, RoHS and other national lamps and lanterns inspection certification;Focusing on LED technology application innovation, industrial design innovation, business model innovation, is LED outdoor lighting, LED indoor lighting to soft light strip, neon light strip,linelight, LED module, intelligent lighting, commercial lighting and other products integrated application solutions provider.

24V Under Shelf LED Lighting Black Silver Aluminum Profile Under Cabinet Strip Lighting 2

24V Under Shelf LED Lighting Black Silver Aluminum Profile Under Cabinet Strip Lighting 3

FAQ

Q1. Are you a factory or trading company? A: We are a factory, we provide ODM& OEM services.

Q2. Do you have any MOQ limit for led
light order? A: Low MOQ, 1pc for sample checking is available

Q3. What about the lead time? A:Delivery time for sample:3-5days
after get your samples request and samples charge. Delivery time for mass production: 10-18days after order confirmed after
receiving buyer's deposit

Q4. How do you ship the goods and how long does it take to arrive? A: We usually ship by DHL, UPS, FedEx
or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.

Q6: How to deal with the faulty? A: Firstly, Our products are produced in
strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send
new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can
discuss the solution including re-call according to real situation.
