Place of Origin:
China
Brand Name:
SHWellShow
Certification:
CE & RoHS
Model Number:
led cabinet lights 0709
Contact Us
Led Cabinet Light Under The Cabinet Alumunim Linear Light 12V 24V Magnet Clips Lighting Shelf Closet Rigid Lights
1, the led cabinet light use for under cabinet/shelf/closet lighting your cloth/books/Wine etc.

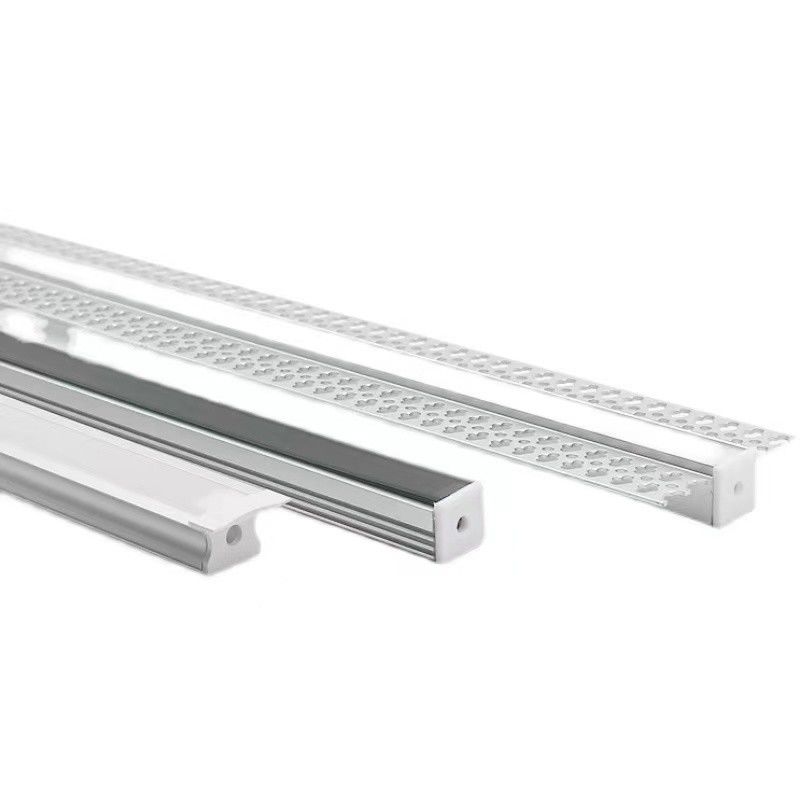

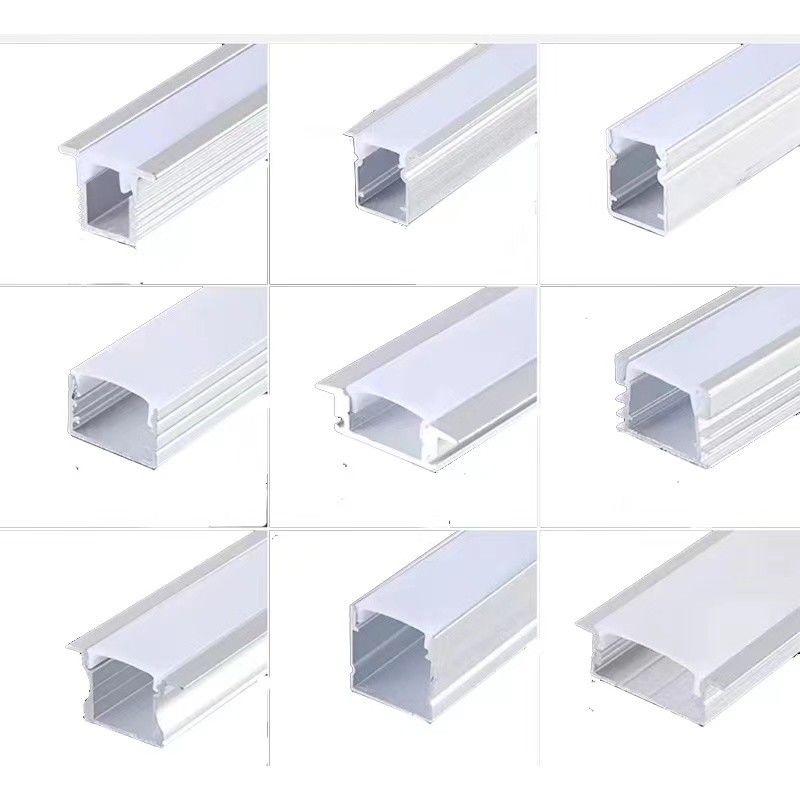

2, the led cabinet light aluminum profile with milky / clear/pvc cover for unifor lighting;
3, the led cabinet light can do 12V/24V or high voltage no problem, but we suggest the low voltage for keep well the safety;
4, the led cabinet lights install easy to your site, we will offer the clips, 3M-Double-sided adhesivemagnets and clip with magnets denpen on your need;
The led cabinet light features :
1, the led cabinet light we can do 90° 45° 120° polarized led light, anti-glare & not dazzling, luxurious high-quality cabinet light
2, the led cabinet light Using high-quality & high-brightness lamp beads, the light output is uniform, no stroboscopic
3, The led cabinet light raw material of the aluminum profile is of high quality, the color paint is uniform, and the incision is smooth

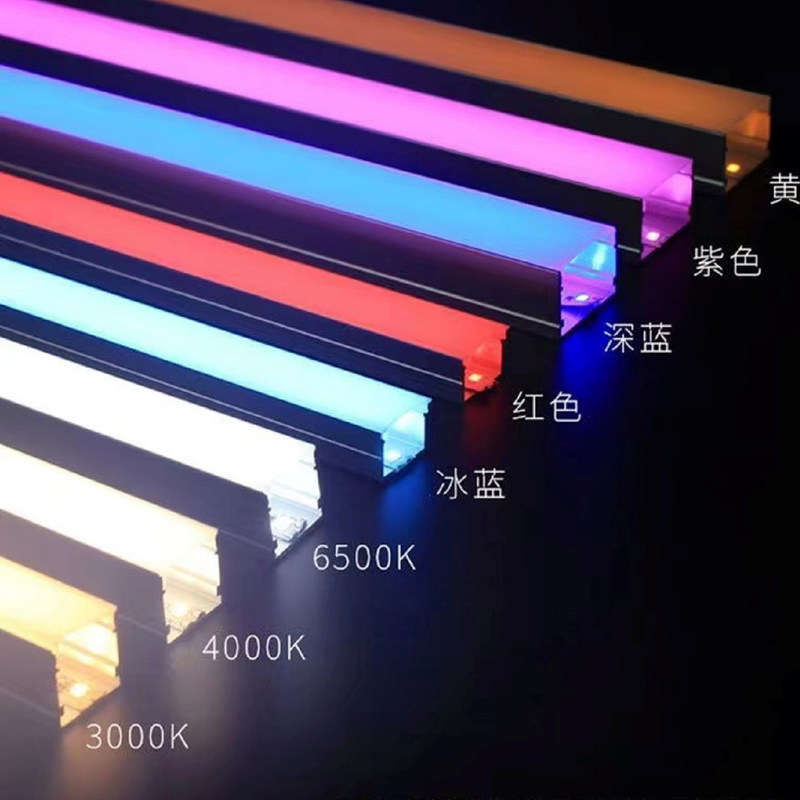

4, the led cabinet light can Customizable lighting , lighting color temperature can be customized according to site requirements for: warm light, natural white light, cool white light, RGB
The led cabinet light advantage:
1, Flexible & Rigid stirp can customized ,for the led lighting , we have SMD/ COB/Righd different kinds of them can be let you select.
2, Adapter with Connectors, the power supply comes with a connector, you can choose a suitable power supply according to your needs, easy to install and easy to use
3, Different Kinds Of Controller, our controllers have a variety of different types: infrared induction, human body induction, hand sweep control, door opening and closing control, switch button method
4, Aluminum Color Can be Customized ,profile color we generally have: black, silver, gray, white and gold, if there are other special color requirements, we can also customize according to demand
Product Name | LED COB Light |
Volgate | 24V/12V |
Power | 10W/Meter Customized |
LED QTY | 480led/Meter Customized |
CCT | 2700~6500K Customized |
CRI | 90 |
Lumen/W | 70lm/W |
Lumen/Meter | 700lm/meter |
Length | 5M (Can be customized) |
Led Brand | Cree/lumileds/ Osram Customized |
PCB Width | 8mm Customized |
Beam Angle(°)FWHM | 120° |
Cutting Size | 50mm |
Definition of line sequence | Red=+12V Black=-12V |
Outgoing lines way | Straight line & Side line & Bare & Connector |
Control Mode | Single color temperature |
Maximum serial number | Single power supply 5 meters in serial |
Material | Milky Silicone clear sleeve |
Oper.Temp. | “-25℃~+50℃ |
IP Rating | IP20 IP65 IP67 Customized |
IK Rating | IK08 |
Certification | CE & RoHS |
Certification :
The led neon lights we have been doing the CE & RoHS Certification already as the below show.
Shanghai Wellshow Opto Electronics Co.,Ltd., founded in 2013 in China, relying on Dongguan Lan Kaixin as the production base;With the industry's advanced manufacturing equipment and the first through the ISO9001 quality management system certification;More than 40products have won national invention patents, utility model and appearance patents, products through CCC, CQC, CE, RoHS and other national lamps and lanterns inspection certification;Focusing on LED technology application innovation, industrial design innovation, business model innovation, is LED outdoor lighting, LED indoor lighting to soft light strip, neon light strip,linelight, LED module, intelligent lighting, commercial lighting and other products integrated application solutions provider.
FAQ
Q1. Are you a factory or trading company? A: We are a factory, we provide ODM& OEM services.
Q2. Do you have any MOQ limit for led
light order? A: Low MOQ, 1pc for sample checking is available
Q3. What about the lead time? A:Delivery time for sample:3-5days
after get your samples request and samples charge. Delivery time for mass production: 10-18days after order confirmed after
receiving buyer's deposit
Q4. How do you ship the goods and how long does it take to arrive? A: We usually ship by DHL, UPS, FedEx
or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q6: How to deal with the faulty? A: Firstly, Our products are produced in
strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send
new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can
discuss the solution including re-call according to real situation.
